STANDARD SPECS LZ7

Main Frame

TYPE 8" I beam (13 lbs/ft)

Dump Tilt Frame

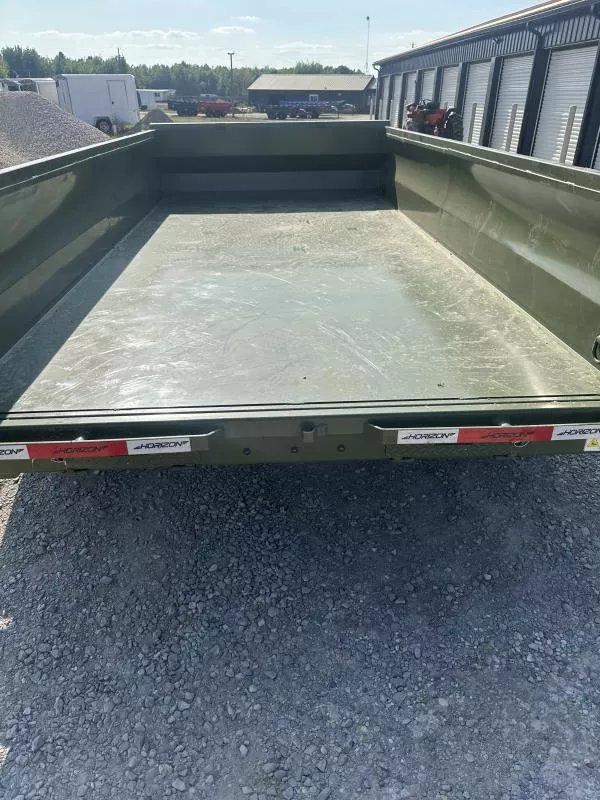

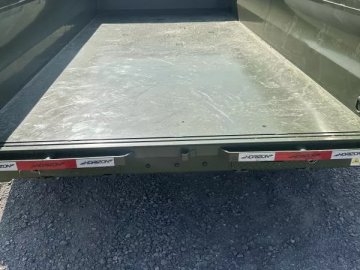

9 gauge Floor

TYPE Angle Iron

SIZE 5" x 5" x 3/8" (12.3 lbs/ft)

CROSSMEMBERS 3" Channel x (3.50 lbs/ft) at 16" Spacing

D-RINGS Four D-Rings (Welded Inside The Box)

Running Gear

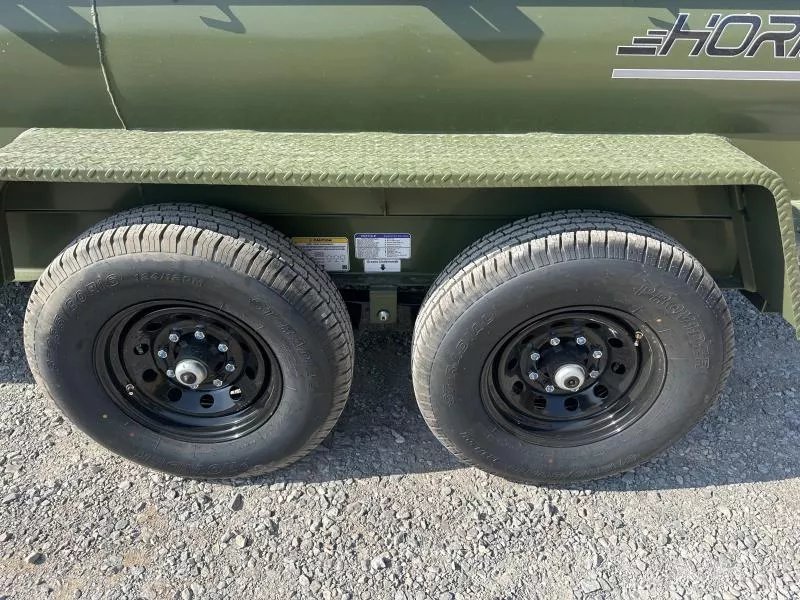

Tires

TYPE Radial Tires

SIZE ST235/80R16

PLY 10 ply

RATING 3,520 lbs.

RIMS 16" Black Mod Wheels

SPARE TIRE OPTIONAL (BUMPERPULL) ST235/80R16 10 PLY

Electrical & Lighting

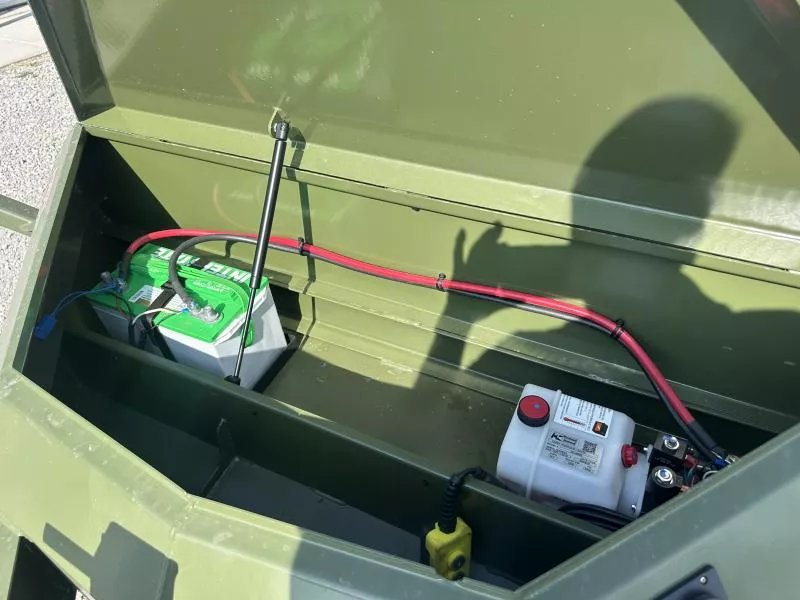

Battery & Charging

BATTERY (1) 27 Deep Cycle Marine Battery

CHARGING SYSTEM 110V Integrated Trickle Charger

WIRING HARNESS All- weather Wiring Harness (7- way RV)

FRAME WIRING Double Insulated Wiring Harness

Lighting

SIDE MARKERS DOT Approved Tecniq LED Lights

Lift System

HEAVY DUTY SCISSOR LIFT

SYSTEM Hydraulic - Power Up / Down

PUMP KTI 12V Hydraulic Pump

CONTROLLER 14' Control Cable

Lift Platform

CYLINDER 6" x 20" Single Push Cylinder w/ Heavy Duty Scissor lift

Tilt

ANGLE 48°

Dump

Sides

TYPE 10ga. Rounded Steel Sides

FENDERS 16" x 9" x 72" x ??" Diamond Plate Steel Fenders

INSIDE WIDTH 83"

HEIGHT 24", 36", 48"

THICKNESS 10ga

LOAD CAPACITY

Rear

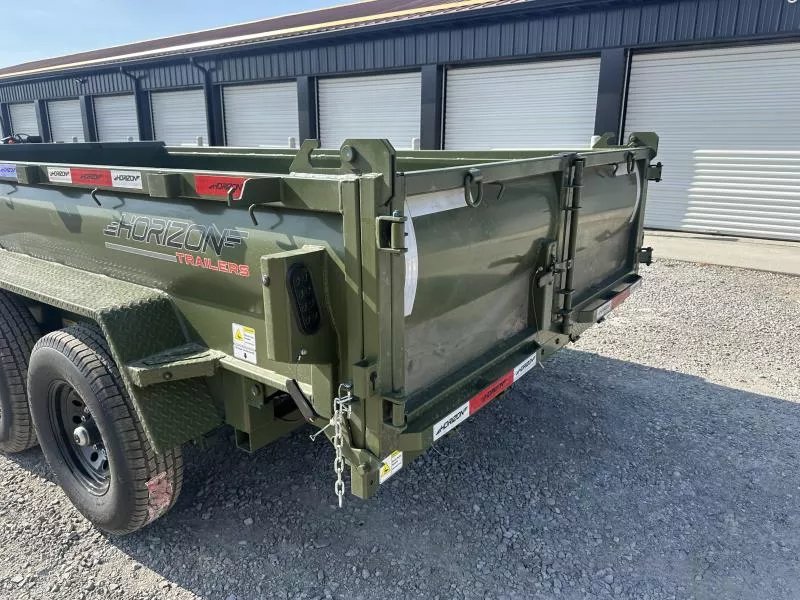

GATE 3-Way Doors

RAMPS 5' Slide-In Channel Ramps

Safety

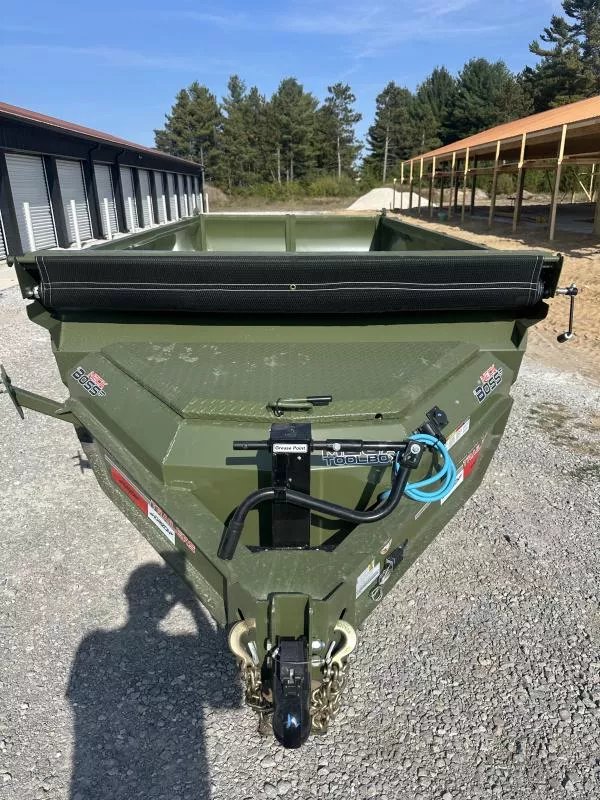

TARP Crank Style Roll-Up Tarp?
